Full Description:

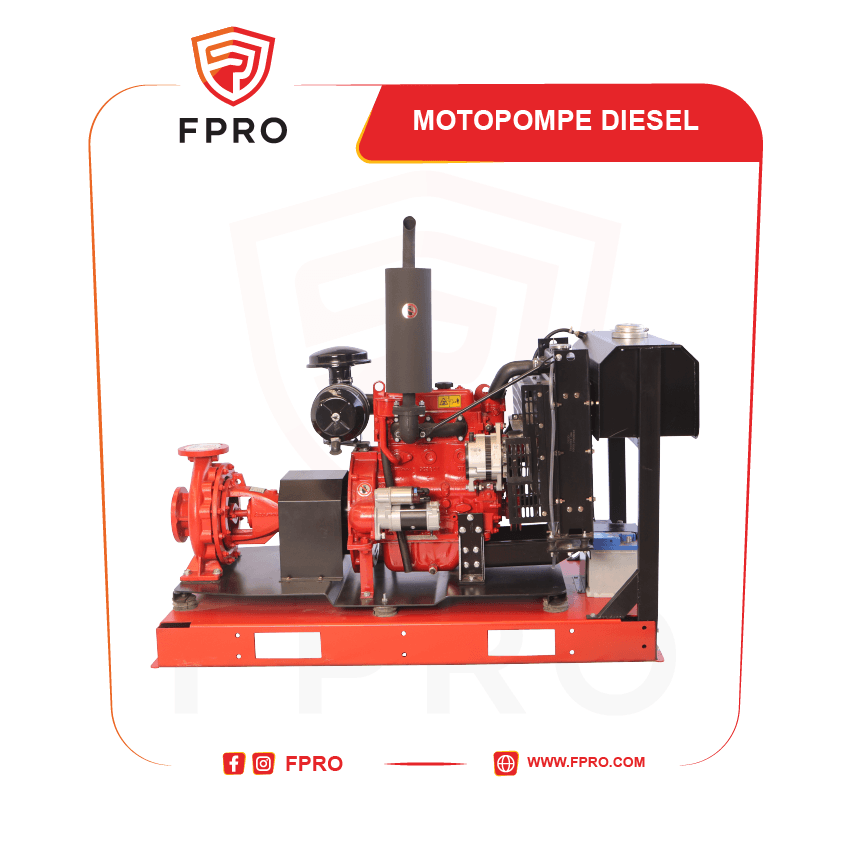

20kW diesel motor pump, featuring a QC380Q 3-cylinder engine with wet liners and an Aquastrong pump. Reliability and performance with an automatic control system.

Engine Technical Details:

• Model: QC380Q

• Type: Vertical, in-line, water-cooled, four-stroke, direct fuel injection

• Number of cylinders – Bore & Stroke (mm): 3 – 80×90

• Displacement (L): 1.36

• Cylinder liner type: Wet

• Intake system: Natural intake

• Rated power / Speed (kW/rpm): 20 / 3,000

• Maximum torque (N.m/rpm): 71 / 2,100

• Minimum specific fuel consumption: ≤ 248g/kWh

• Type of flywheel and flywheel housing: SAE 4#7.5

• Idle speed: <1,000 rpm

• Stable regulation: ≤ 5%

• Compression ratio: 18:1

• Ignition order: 1-3-2

• Specific lubricating oil consumption (g/kW-h): ≤ 1.63

• Direction of crankshaft rotation: Counterclockwise (facing the flywheel)

• Regulator: TQB mechanical variable speed centrifugal

Pump Technical Details:

• Pump: Aquastrong

• Number of revolutions: 3,000 rpm

• Flow rate: 60 m³/h

• Head: 60/90 m

• Motor power: 18.8 kW (24 HP)

• Control system: automatic
